Jaws for jaw crushers

Generally used in stone quarries, ballasting or demolition, jaw crushers are the optimal solution for primary crushing, reducing the diameter of the stone by 3 to 4 times, if they are correctly adapted to the application in which they work. In order to optimize the crushing process with jaws, it is important to take into account some very important aspects: the correct adaptation of the teeth of the jaws according to the working environment, the correct choice of the alloy and the monitoring of the process of crushing during the first days of using the new jaws.

Taking into account that only approximately 30-40% of the total weight of a jaw is used in the breaking process, it is important to choose the best alloy to obtain the lowest possible cost per ton of crushed stone. Whatever your challenge is, we are with you and help you choose the best option for the equipment and the work environment in which you work.

Regardless of the manufacturer of the crusher, we supply from stock or on order basis all wear elements for a jaw crusher: jaws in 14%Mn, 18%Mn or 21%Mn, cheek plates, toggle plates, toggle seats and all fasteners.

We manufacture and supply wear elements for crushers: Kleemann®, Sandvik®, Metso®, Terex Pegson®, OMT®, OM®, Parker®, REV®, Extec®, Baioni®, Pozzatto®, Comec®, Continental®, Bohringer ®, Svedala®, Hazemag®, Krupp®, SBM®, Rubble Master®, CIMA®, Loro Parisini® and any other crusher manufacturer.

In order to avoid downtime, we make sure that we have in stock the wear elements necessary for uninterrupted operation, for a wide range of these equipments.

Category:

Descriere

Do you want to operate without unforeseen interruptions? We know how.

We arrive at your site in a maximum of 48 hours, we will ensure that we implement the best technical solution in order to have safety in long-term operation.

Do you have an unidentified crusher?

We offer multi-brand solutions, for new or second-hand equipment, from local production or import, constantly seeking to offer the solution that generates the best cost/lifetime performance.

Do you want a better yield without increasing your costs?

Harden the crusher jaws before starting work and you will increase their life by up to 100%.

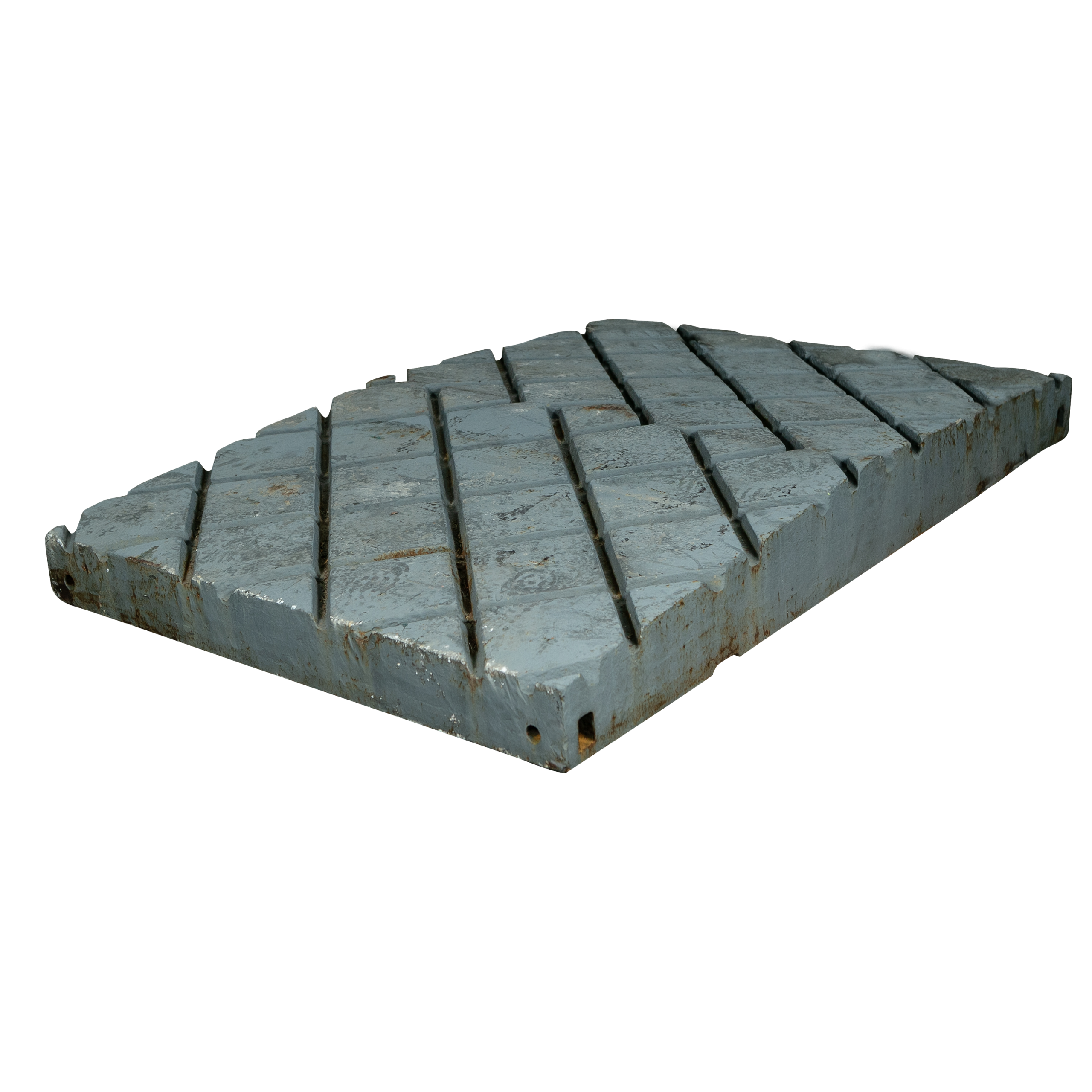

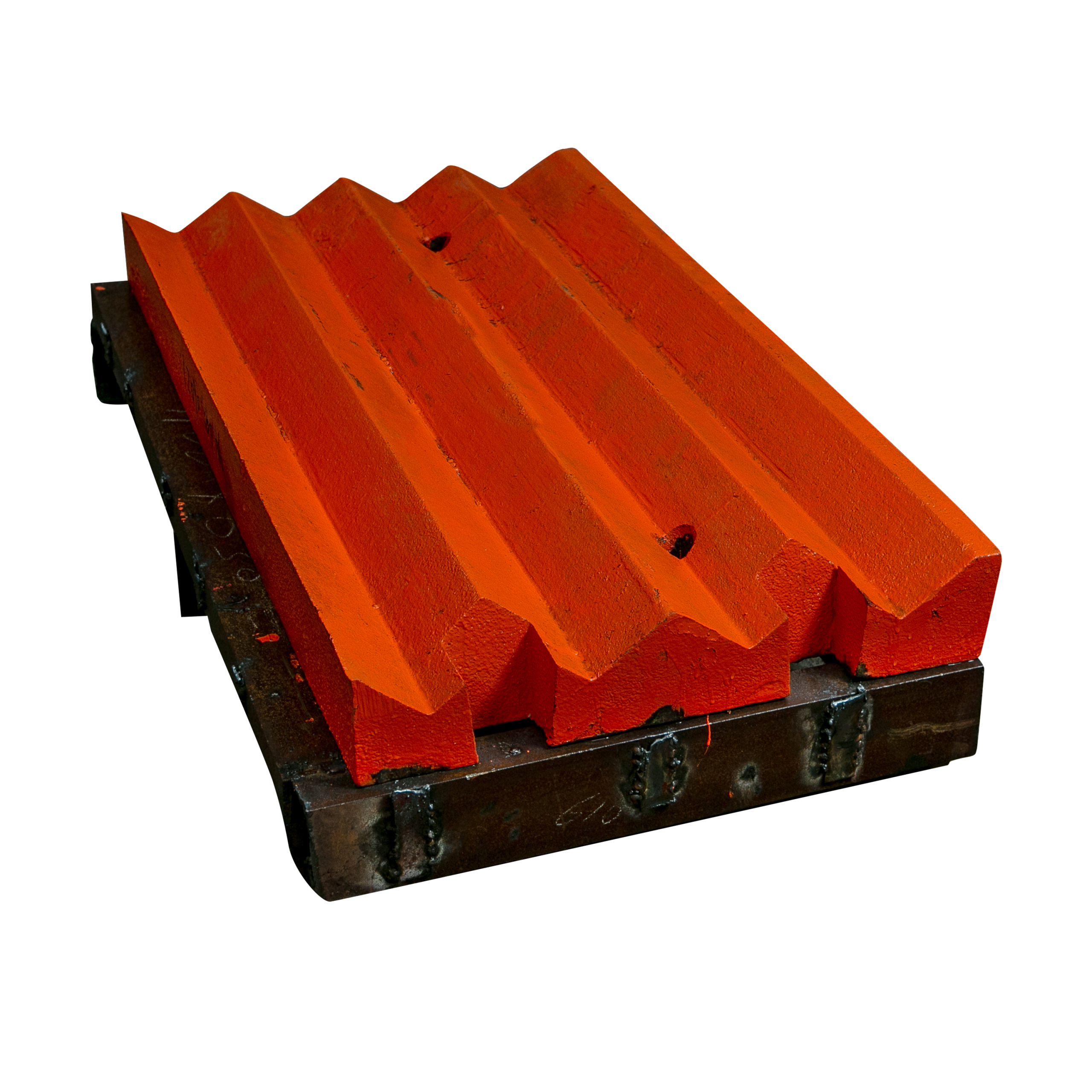

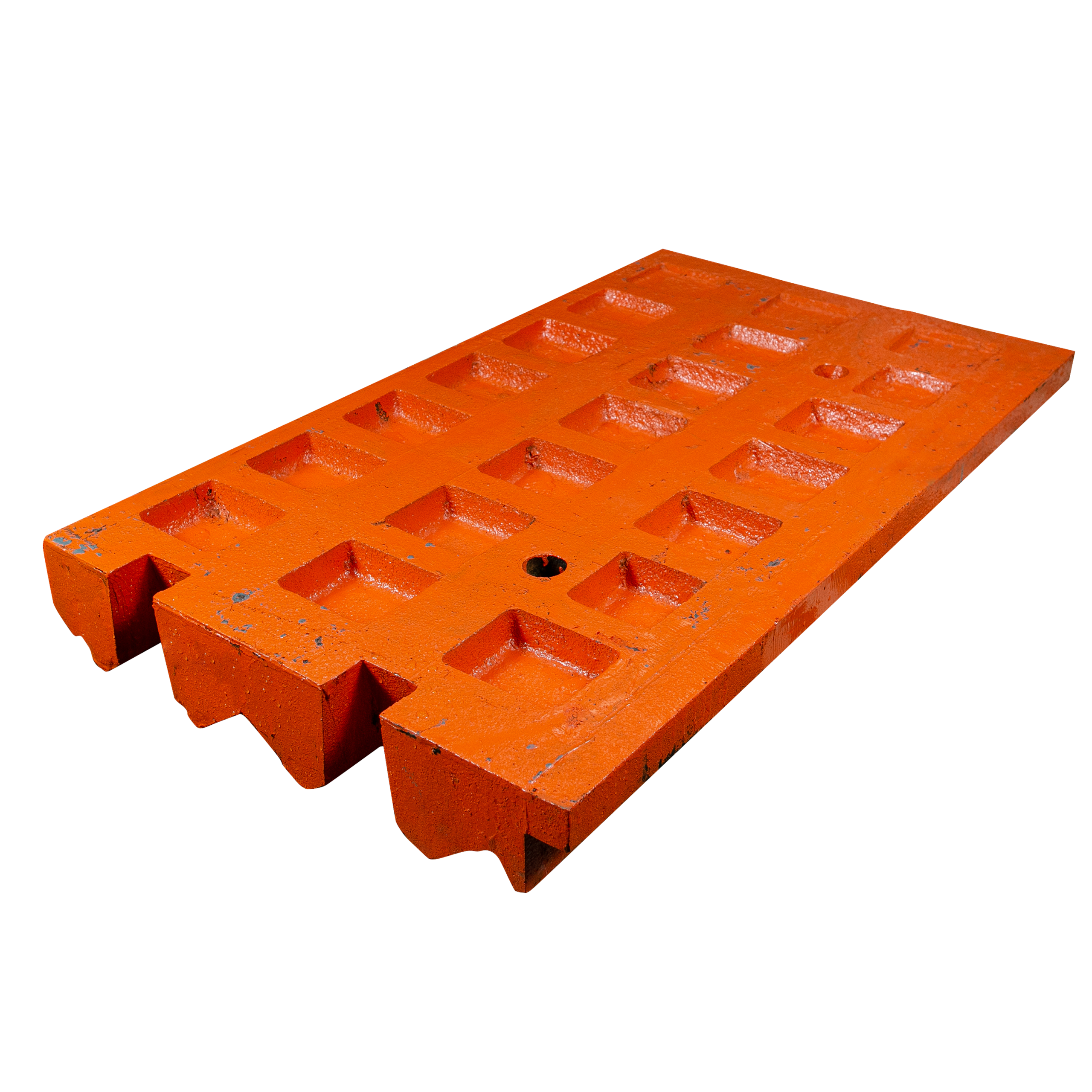

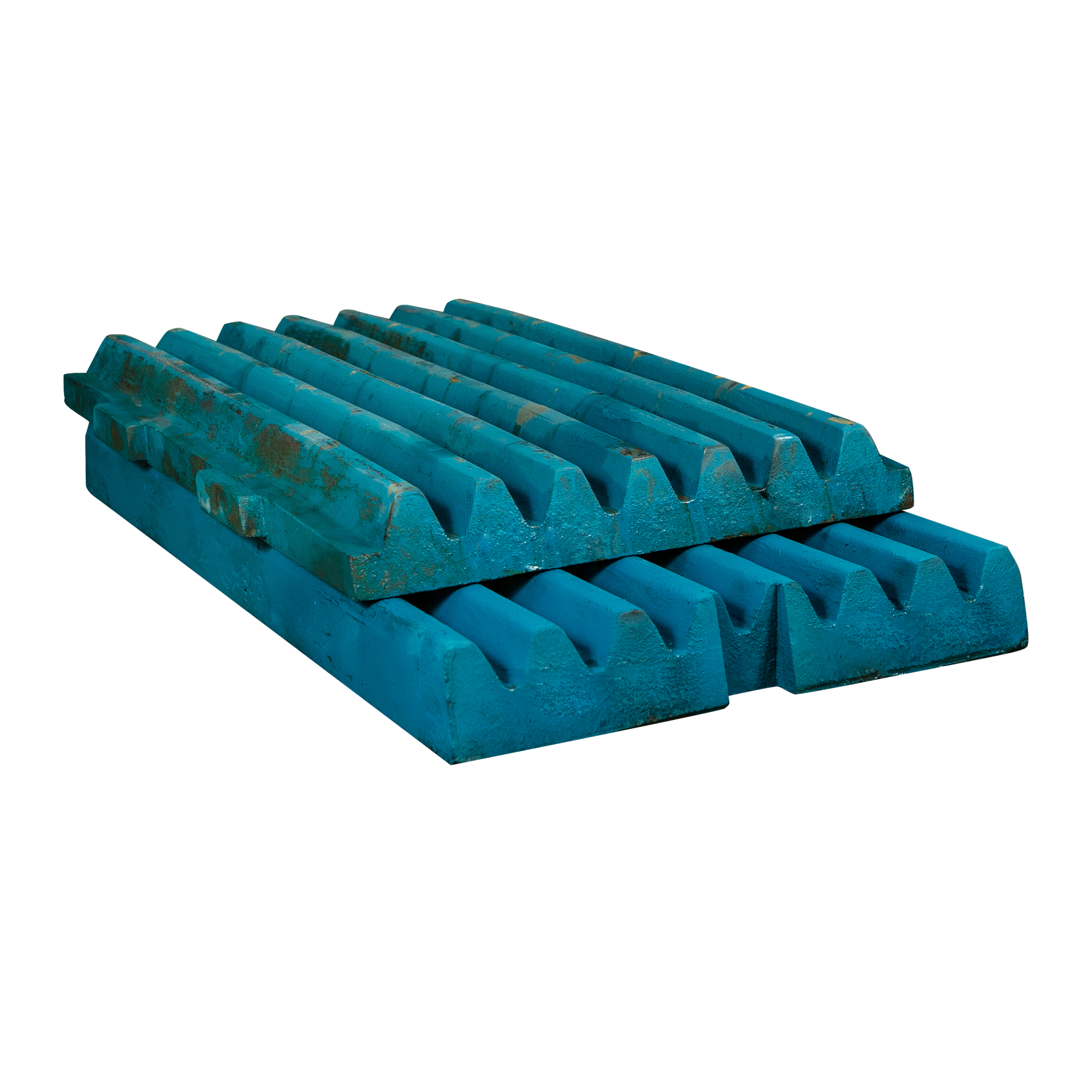

Available in different configurations adapted to the specifications of the stone to be crushed, we are with you to choose the optimal version of the jaws of the crusher:

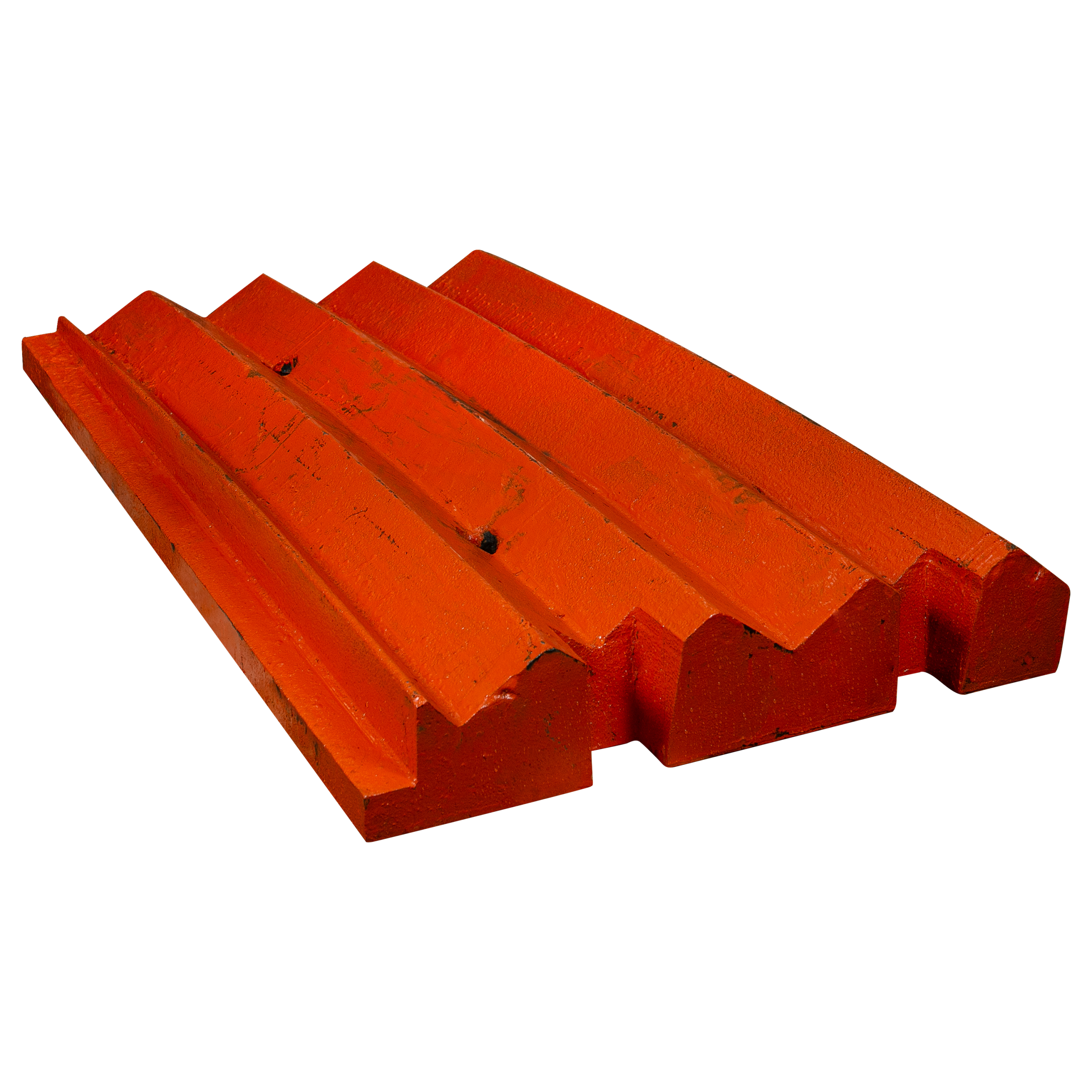

Quarry jaws – Heavy-Duty

  • Generally recommended in primary crushing in quarries where the stone grain is high or in demolitions;
  • designed to withstand high impact forces very well;
  • Straight tooth profile – results in a larger contact surface with the material and a higher life span – 30-50% longer compared to standard jaws;
  • Manganese steel castings with a concentration of 18%Mn or 21%Mn;

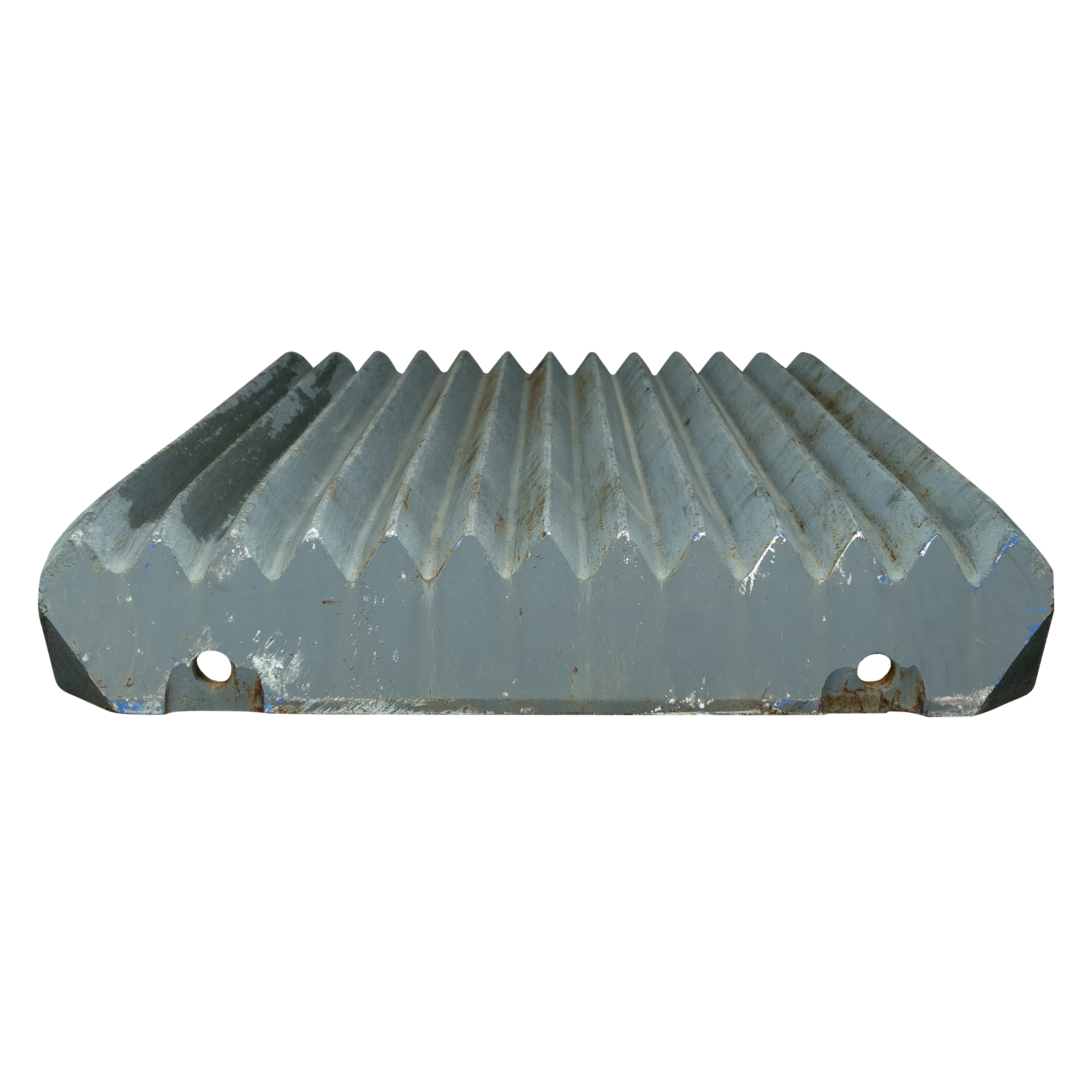

Standard/corrugated jaws

  • This tooth profile is most often found in common applications such as: sand and gravel pits, road construction, quarries – where the stone is not abrasive and the impact forces are not very high;
  • The best compromise between lifetime and resulting granulation;
  • Castings out of 14%Mn, 18%Mn or 21%Mn;
  • Short lead time – stock for over 150 models of jaw crushers;

Ballast jaws – small teeth

  • Most often used in gravel pits
  • Get higher yield in crushing stone of small grains;
  • Optimize productivity;
  • Increase the resulting small material fraction;
